738 PowerSafe

The BCS 738 PowerSafe two-wheel tractor has a gearbox with 3 forward and 3 reverse speeds and a quick reverser to change the forwarding direction.

The differential with lock is serial and makes the unit more practical and maneuverable.

The handlebar is adjustable and reversible, and allows to use both rear and front attachments.

You may choose from three types of gasoline engines for this model: Honda GX270, 9 hp, Honda GX340, 11 hp or Briggs&Stratton XR1450, 10 hp and a diesel engine: Kohler KD350, 7.5 hp.

Thanks to its basic features, the 738 Powersafe two-wheel tractor can be easily used both in the hobby and professional sectors.

Engines

Engine Fuel Starter Power HP
Honda GX270 Gasoline Recoil or Electric 9
Honda GX340 Gasoline Recoil 11
Briggs&Stratton XR1450 Gasoline Recoil 10
Kohler KD350 Diesel Recoil or Electric 7,5



Dimensions & Weights

dimensions and weights

Width min / max (without attachment):
  • with wheels 5.0-10: 493 / 565 mm
  • with wheels 6.5/80-12 and wheel spacers: 681 / 778 mm
  • with steel cage wheels Ø cm 43: 436 mm
Weight (without attachment):
  • with GX270 engine, wheels 5.0-10: 100 kg
  • with GX270 AE engine, wheels 5.0-10: 102 kg
  • with GX340 engine, wheels 5.0-10: 106 kg
  • with XR1450 engine, wheels 5.0-10: 100 kg
  • with KD350 engine, wheels 5.0-10: 116 kg
  • with KD350 AE engine, wheels 5.0-10: 120 kg



Technical features

  • No. of speeds FWD/REV: 3 + 3
  • Quick reverser: yes
  • Clutch: multi-disc in oil bath PowerSafe
  • Differential with lock: yes
  • PTO: independent at 990 rpm with engagement in oil bath
  • Parking brake on the two wheels
  • Driving position with adjustable and 180° reversible handlebar mounted on shock absorbers to reduce vibrations

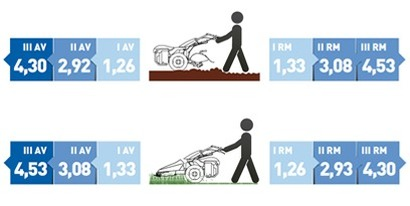

  • Graph of the speeds in km/h with 5.0-10 tyres



PowerSafe

powersafe The PowerSafe hydraulic clutch ensures several advantages:

  • Performance and Reliability of a hydraulic clutch with no maintenance, even in heavy use with alternating movement tools (cutter bars) or in use at a high inertia level (lawn mower or heavy-duty mower).
  • Safety immediate machine stop due to an integrated automatic brake which stops both the machine and the attachment when releasing the handlebar.
  • Comfort with elimination of preliminary stages for engine starting which runs continuously even when the operator releases the handlebar.
  • Guarantee: the PowerSafe clutch unit has a 5-year extended guarantee.
